Panhard Bar Fab Kit - 3/4" Chromoly Heim - 1.75" OD Tubing

50 Caliber Racing Panhard Bar Rod End Kit - 3/4"-16 x 3/4" Bore Chromoly Heims, Bungs for 1.75" OD Tubing

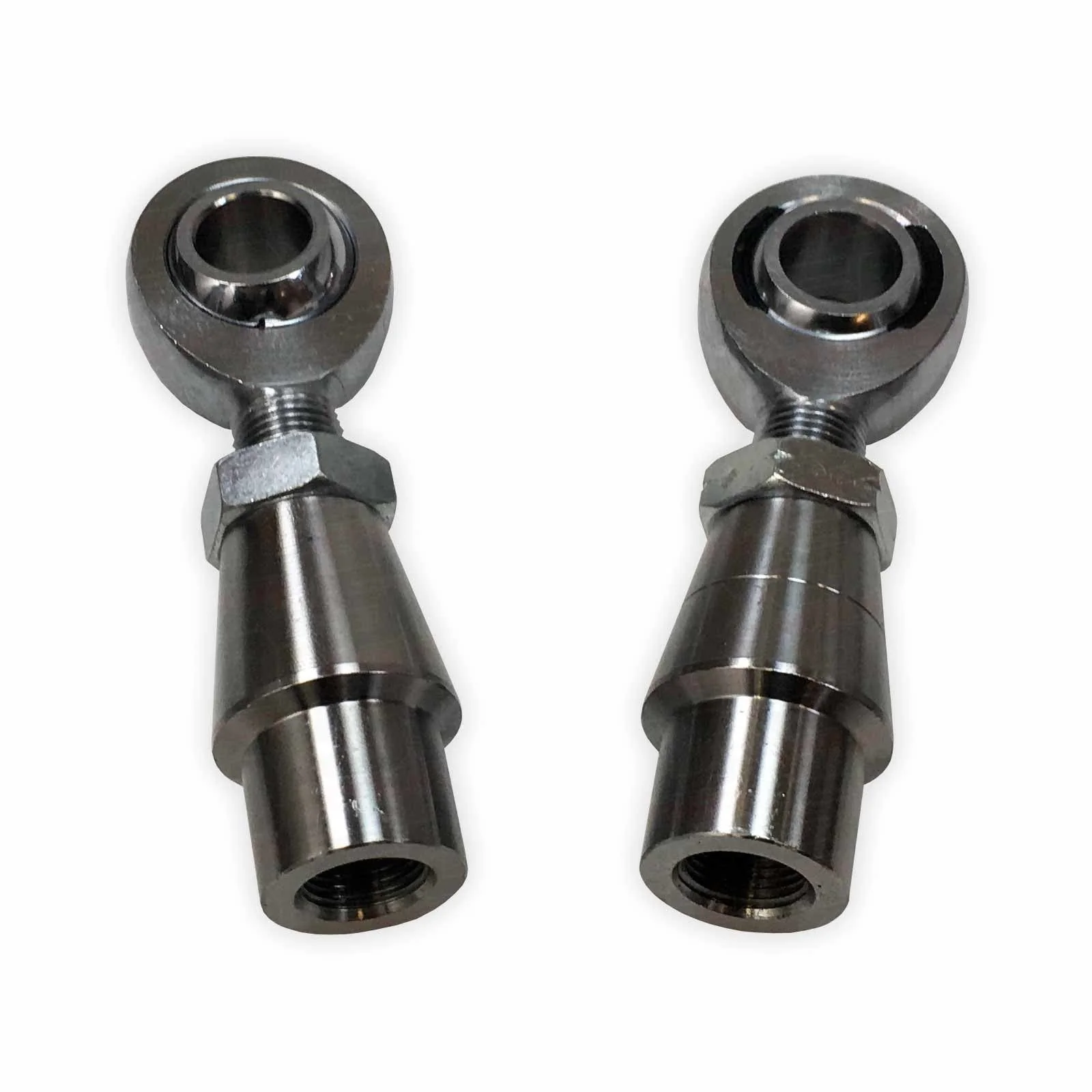

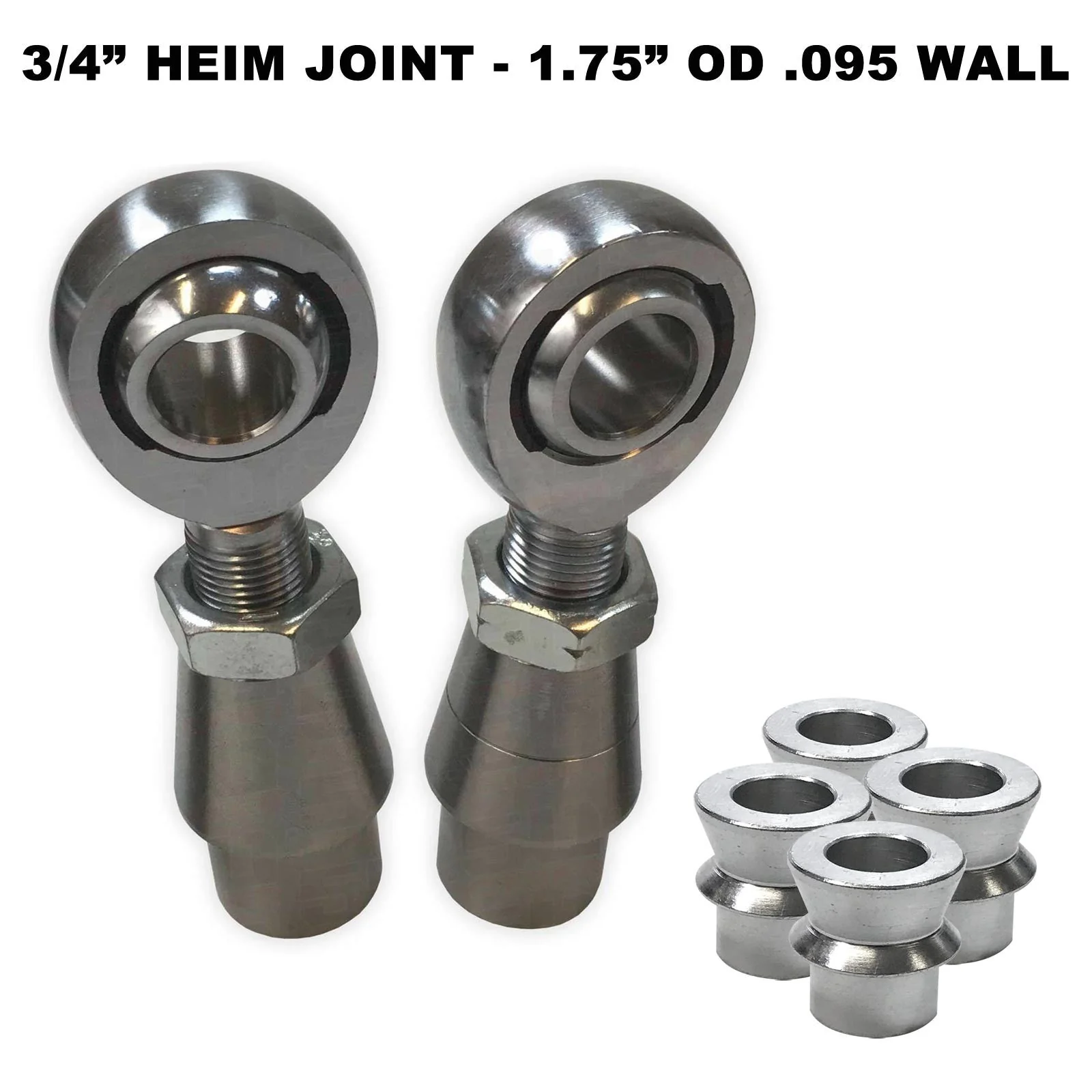

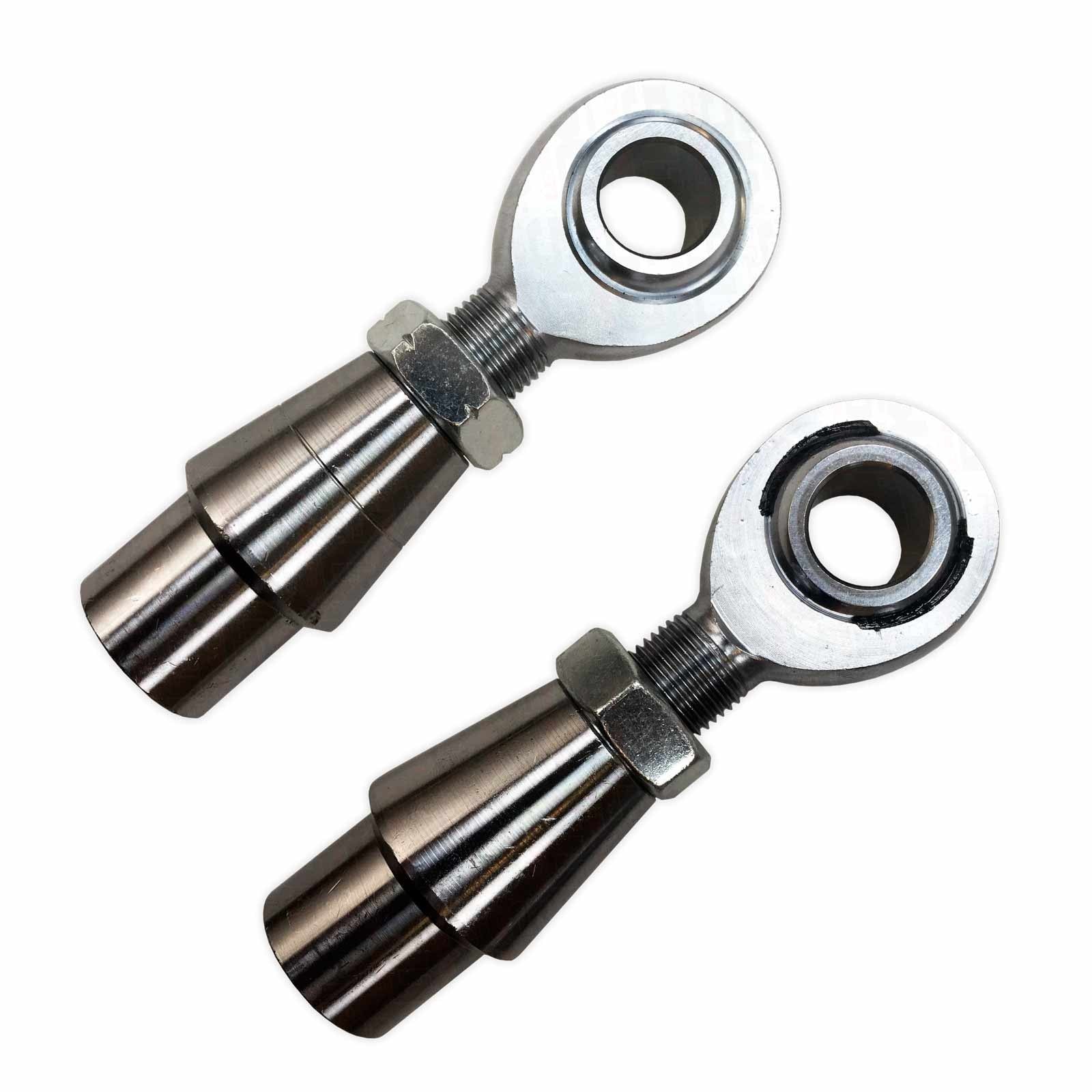

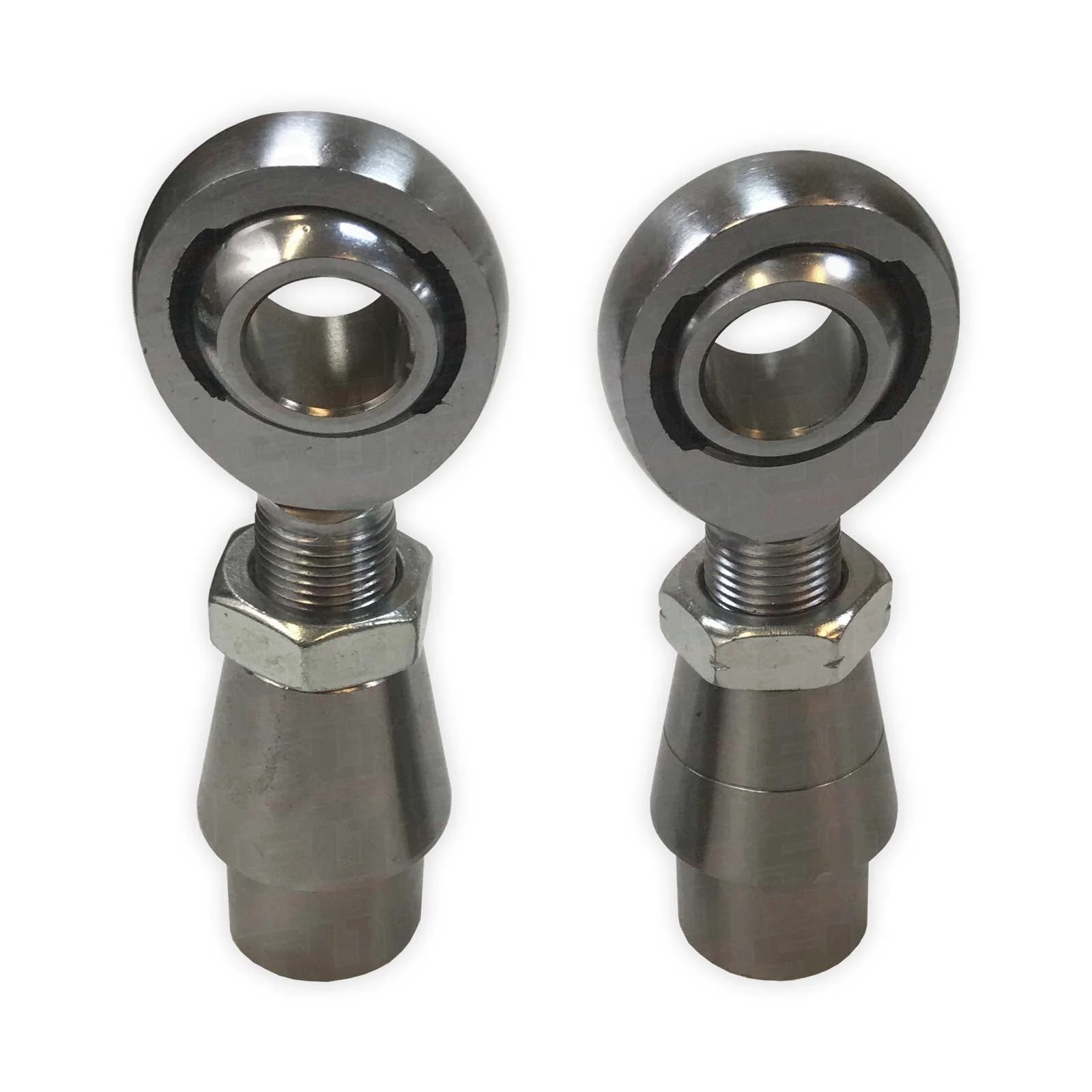

Rod end fabrication kit complete with 3/4 x 3/4 heat treated chromoly heim joints, jam nut, and a weld in bung (tube adapter). Designed specifically for 1.75" OD tubing, with wall thickness of .095 or .120. Heim joints are made from 4130 Chromoly steel, with a nylon / teflon PTFE liner. The extreme load rating and size make these excellent for building a custom panhard bar (trackbar), tie rods and radius arms for trucks, 4x4s, rock crawlers, J**ps, sand rails & more. Includes heim joints, jam nuts and matching bungs. Available with or without high misalignment spacers.

Includes:
- (1) 3/4-16 x 3/4 bore Heim - RH Thread
- (1) 3/4-16 x 3/4 bore Heim - LH Thread
- (1) RH Jam Nut
- (1) LH Jam Nut
- (1) RH Weld in Bung (tubing adapter)
- (1) LH Weld in Bung (tubing adapter

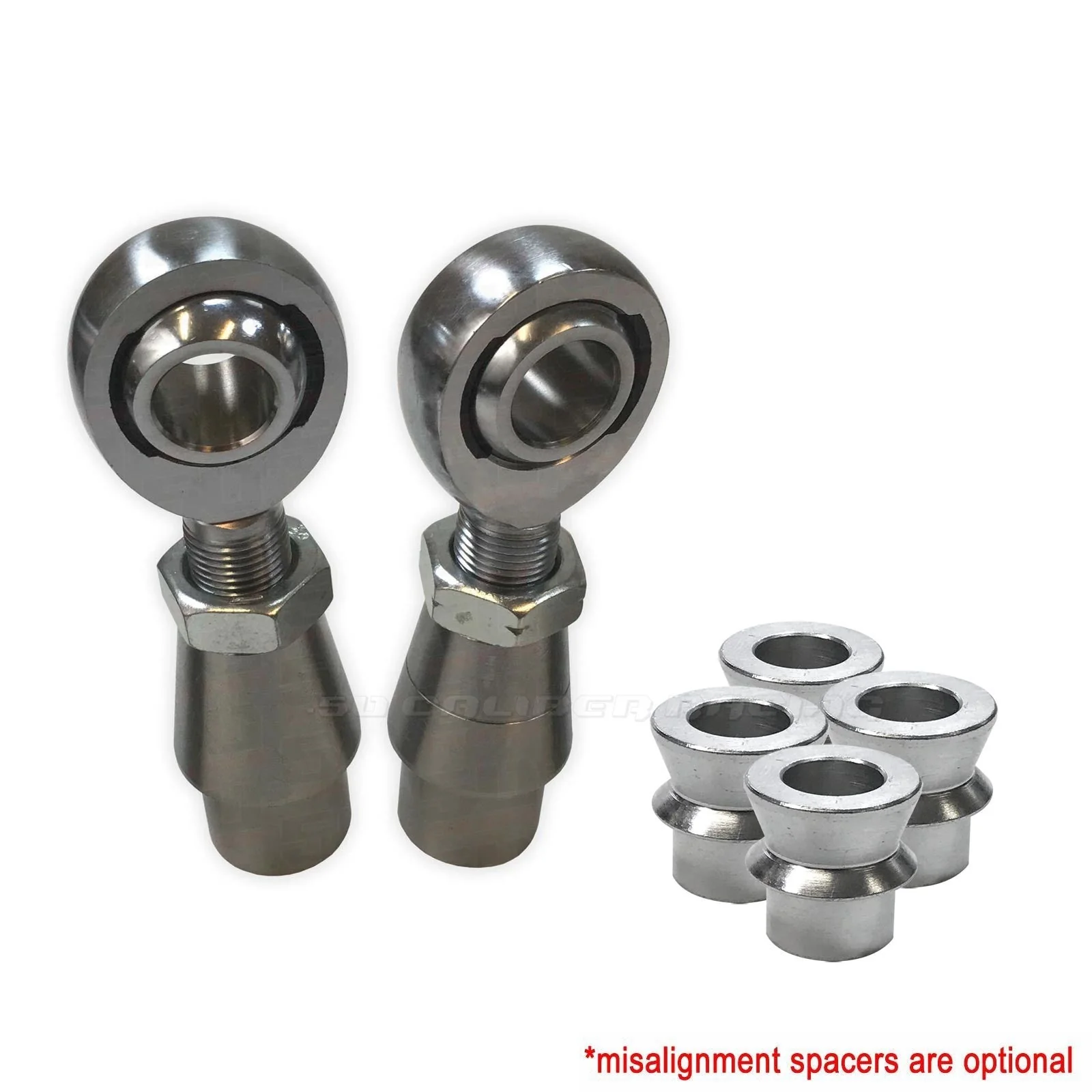

Optional:
- (4) High Misalignment Spacers

Specifications:

Heim Joint:
- 4130 Chromoly Steel, Nylon / Teflon (PTFE) Liner
- Static radial load rating: 28,081 lb
- Thread pitch:  3/4"-16
- Bore: 3/4"
- Socket end diameter: 1.750"
- Socket width: .687"
- Ball width: .875"
- Center line length: 2.875"

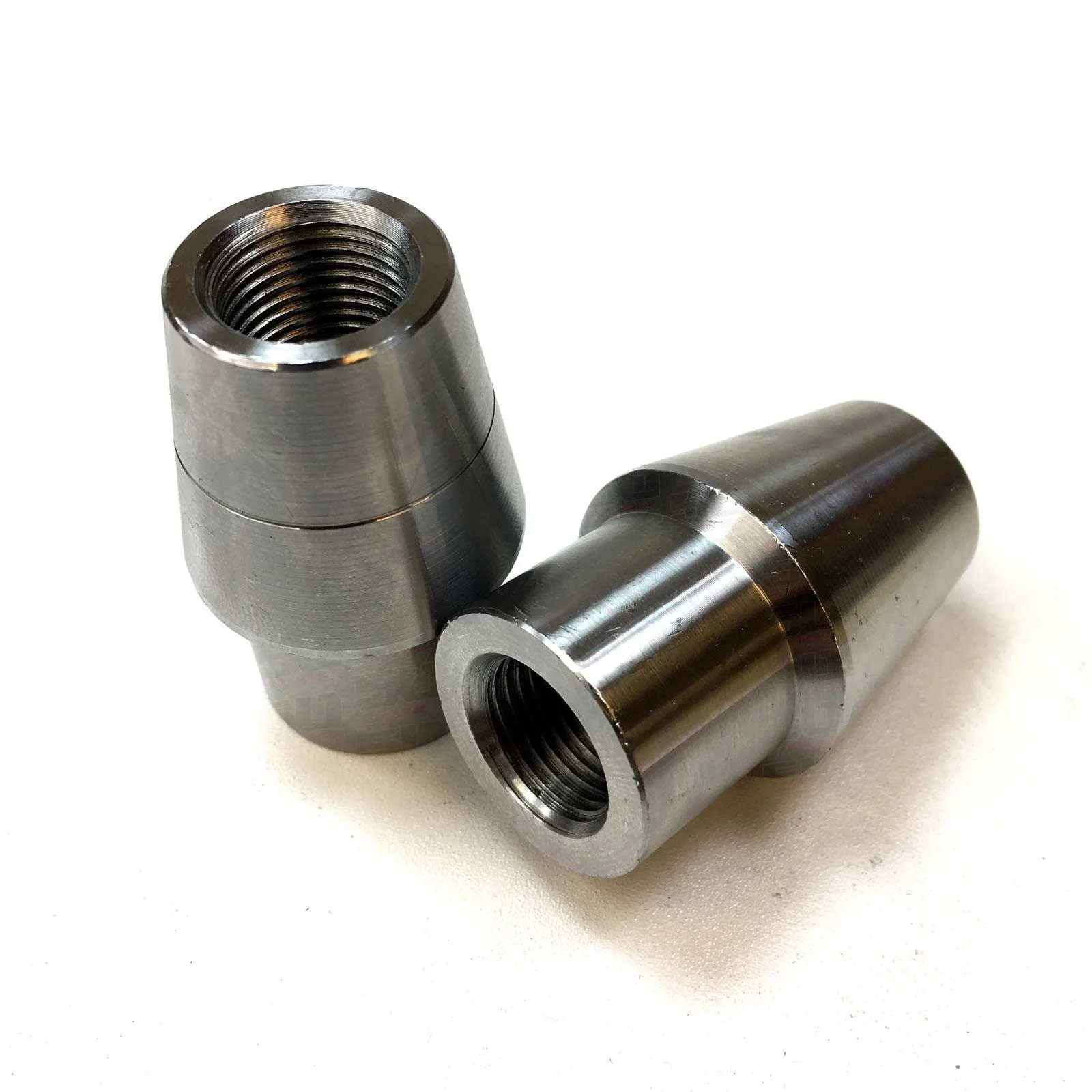

Bung:
- Thread: Female 3/4"-16
- Material: Chromoly Steel
- Thread Length: Full length
- Choose from 2 different tube sizes:
   1.75" OD x .095 Wall x 1.56" ID
   1.75" OD x .120 Wall x 1.51" ID

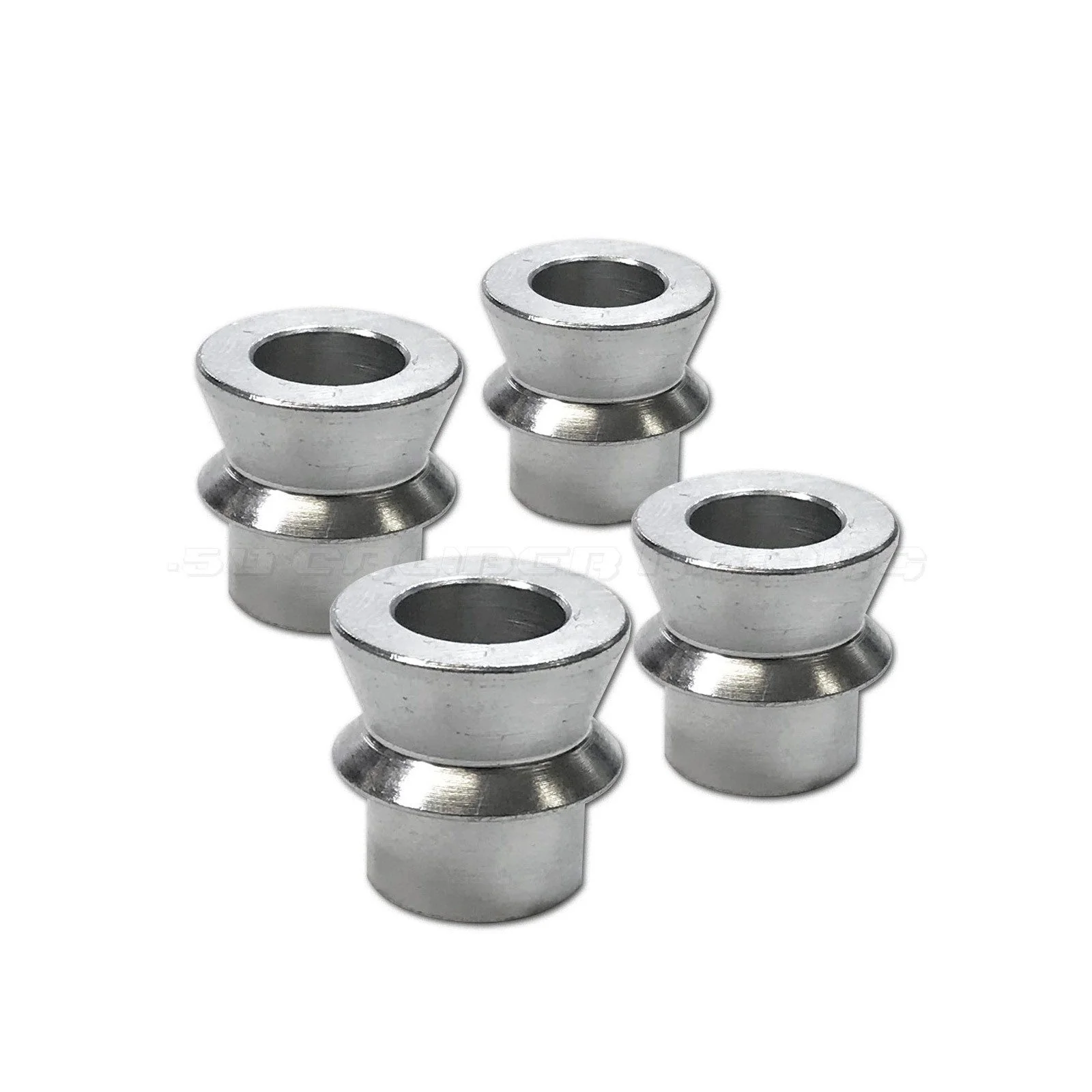

Misalignment Spacers (optional)
- Material: Chromoly Steel
- Surface finish: Zinc plated
- .625" ID x .743" OD x .922" W
- Compatible with 5/8" bolt size

Perfect for fabricating custom suspension and steering links on your 4x4, rock crawler, sand rail, hot rod, Jeep and more!

- Panhard bar / Trackbar
- Drag link
- Hi steer components
- Radius rods
- Sway bar links
- Tie rods
- Control arms
- 3 Link / 4 Link
- Custom Mounts
