4 Link Rod End Kit - 1/2" Chromoly Heim - 1" OD Tubing

50 Caliber Racing 4 Link Fab Kit - 1/2-20 x 1/2 Bore Chromoly Heims & Bungs for 1" OD Tubing, .095 or .120 Wall

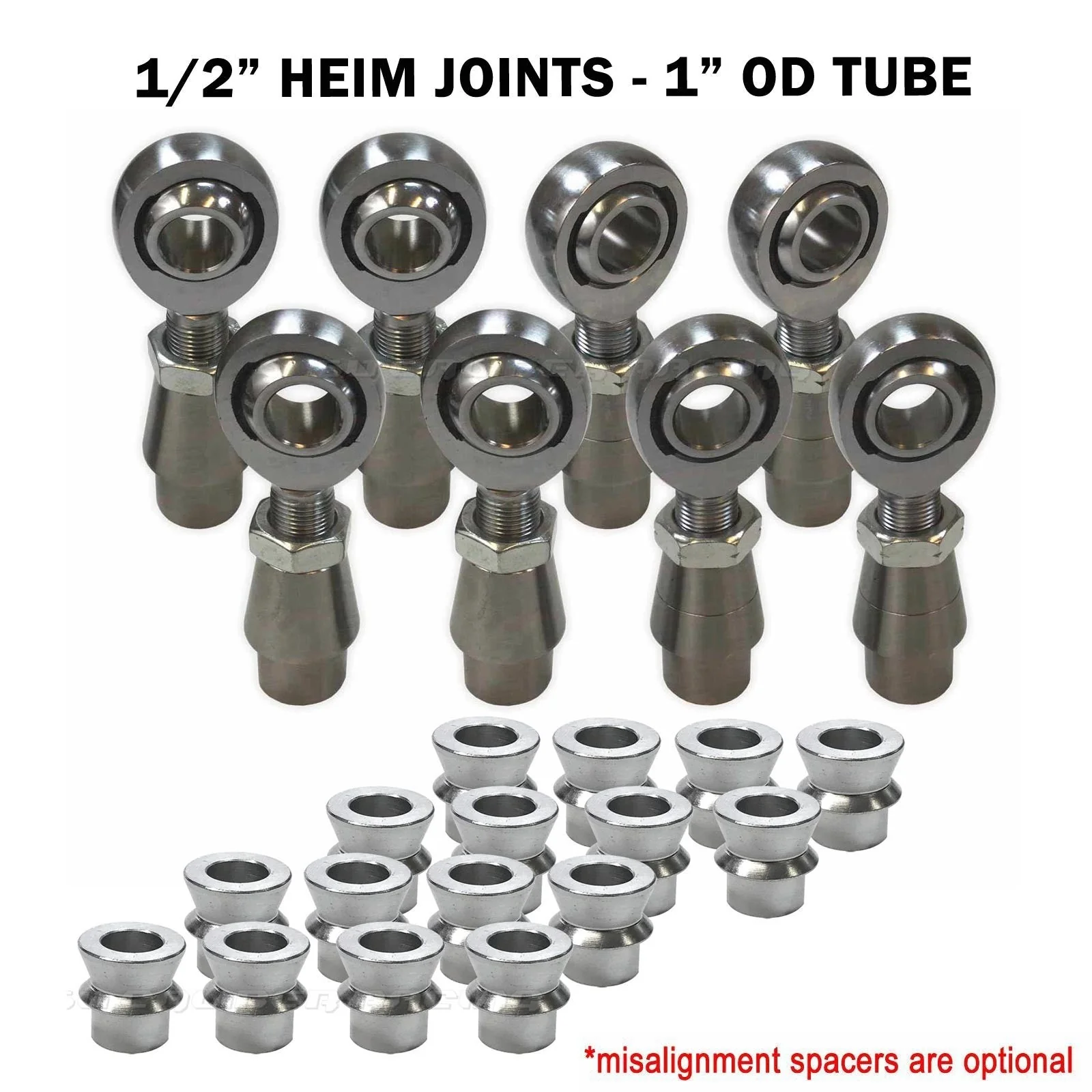

Rod end fabrication kit complete with 1/2 x 1/2 heat treated chromoly heim joints, jam nuts, and weld in bungs (tube adapter). Designed specifically for 1" OD tubing, with wall thickness of .095 or .120. Heim joints are made from 4130 Chromoly steel, with a nylon / teflon PTFE liner. The load rating and size make these excellent for building a custom 4 link suspension setup, radius rods and control arms for go karts, ATVS, UTVs, cars and more. Includes four Left and four Right hand thread heim joints, and matching bungs. Available with or without high misalignment spacers.

Includes:
- (4) 1/2-20 x 1/2 bore Heims - RH Thread
- (4) 1/2-20 x 1/2 bore Heims - LH Thread
- (4) RH Jam Nuts
- (4) LH Jam Nuts
- (4) RH Weld in Bungs (tubing adapter)
- (4) LH Weld in Bungs (tubing adapter)
Optional:
- (16) Misalignment spacers

Specifications:

Heim Joint:
- 4130 Chromoly Steel, Nylon / Teflon (PTFE) Liner
- Static radial load rating: 16,238 lb
- Thread pitch: Male 1/2"-20
- Bore: 1/2"
- Ball end diameter: 1.312"
- Socket width: .500"
- Ball width: .625"
- Center line length: 2.438"

Bung:
- Thread: Female 1/2"-20
- Material: Chromoly Steel
- Thread Length: Full length
- Choose from 2 different tube sizes:
   1" OD x .095 Wall x 0.81" ID
   1" OD x .120 Wall x 0.76" ID

Misalignment Spacers (optional):
- Material: Chromoly Steel
- Surface finish: Zinc plated
- .375" ID x .499" OD x .500" W
- Compatible with 3/8" bolt size

Perfect for fabricating custom suspension and steering links on your go kart, sand rail, hot rod, race car, utv and more!

- 4 Link suspension arms
- Tie Rods
- Hi steer components
- Radius rods
- Panhard bar / trackbar
- Drag link
- Control arms
- Sway bar end links
- Custom Mounts
